Recens® Automatic Truck Loading Robot

Applications

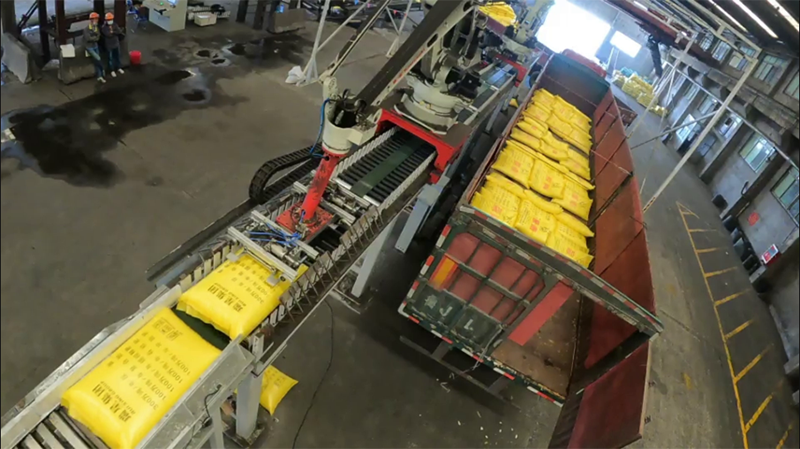

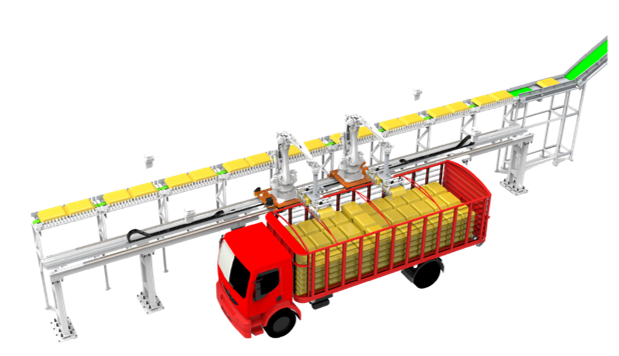

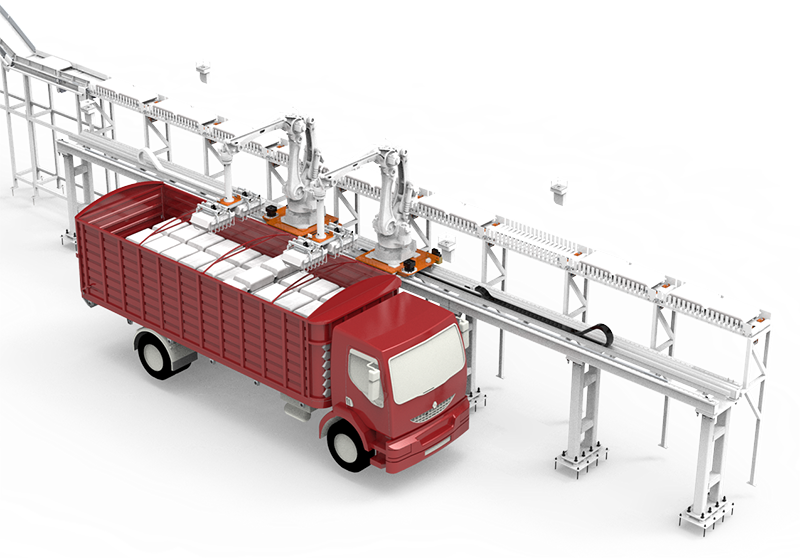

The Recens® Automatic Truck Loading Robot replaces the last manual job in a bag dispatch hall. Two robotic arm modules run on a double-column gantry over the loading bay; the machine picks filled bags from the packing line conveyor and stacks them into the truck in a programmed pattern — layer by layer, front to back, at a steady 1,200 bags per hour. Because the pattern is stored in the PLC rather than decided by a person, every truck leaves with the same tightly built load, and the loading bay needs an operator only to start the cycle and confirm the vehicle is in position.

Key Features

• Two robotic arm modules on a double-column gantry — continuous loading without an operator inside the truck

• Average loading efficiency of 1,200 bags per hour, sustained across the shift

• Repeatability of ±0.25 mm, so bags are placed precisely and the stack does not drift

• End effector load range of 5 – 70 kg, covering standard 25 kg and 50 kg bags

• Working area of 4 – 15 m along the loading bay, covering a full truck or container length

• PLC control with touch screen and remote control; stacking patterns are stored and recalled per product and per vehicle

• Handles bags of different sizes and weights by switching the stored programme rather than changing mechanical parts

• Guarded working area with safety interlocks, so nobody enters the loading bay while the robot is running

Applications

Flour and semolina mills loading 25 kg and 50 kg bags

Feed mills and premix plants

Fertilizer bagging halls — urea, NPK and DAP

Cement and dry mortar bag plants

Chemical and mineral bagged products

Sugar, starch and salt dispatch halls

Technical Specifications

Model: RTL50 (dual)

Robotic arm modules: 2 sets

Column structure: double column

Working area: 4 – 15 m

Average loading efficiency: 1,200 bags/hour

Running speed: 2.5 m/s on the X axis, 2 m/s on the Y axis

Repeatability: ±0.25 mm

Z end load: 200 – 300 kg · effective execute end load: 5 – 70 kg

Rated power: 45 kW

Power supply: AC 380 V / 50 Hz

Working temperature: 5 – 45 °C

Control: PLC with touch screen and remote control

The layout is built around your loading bay, so send us the bay dimensions, the truck types and the bag size for a project-specific proposal.

Why Recens

Recens has more than two decades in bulk handling and bagging equipment for mills and processing plants. A loading robot is a system project rather than a machine purchase — the conveyor layout, the bag pattern and the bay dimensions all have to work together — so each installation is engineered as a whole, with commissioning, operator training and ongoing technical support from our own engineers.

Get a Quotation

Send us your bag size and weight, the vehicles you load and the space available — we will propose a layout and quote the complete robot loading system.
