Recens® Bag Depalletizer
Automatic bag depalletizer that unloads filled 25 to 50 kg bags from pallets and stacked vehicle loads at up to 1,200 bags per hour, with 99% pattern recognition, a 90 second vehicle scan and a bag break rate below 0.03%.
Applications

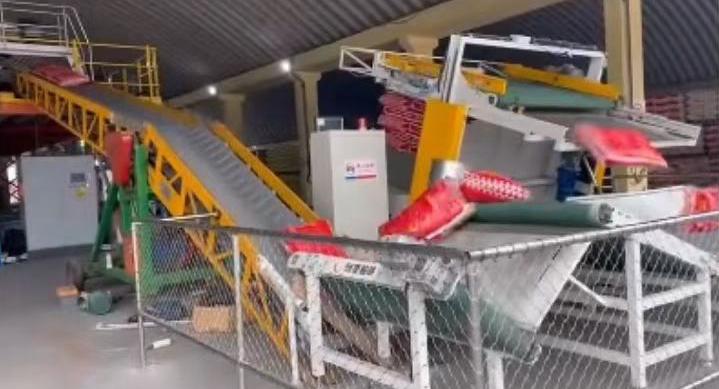

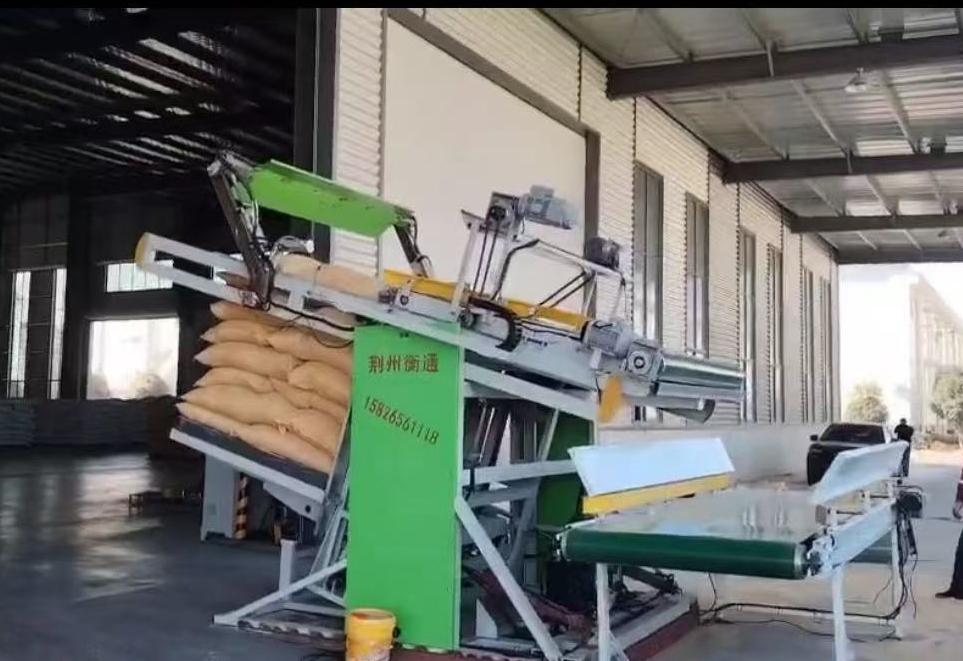

The Recens® Bag Depalletizer takes filled 25 to 50 kg bags off a stacked load and puts them onto a conveyor — automatically, without anyone lifting a bag by hand. The machine scans the pallet or the vehicle, works out the stacking pattern and then removes the bags layer by layer over the full length and width of the load. Because it reads each stack instead of following a fixed programme, one machine copes with different vehicles, different bag sizes and both horizontal and vertical stacking. Bag breakage stays below 0.03 per cent, so the product reaches the warehouse in the condition it left the packing line, and vehicle recognition of 99 per cent or better with a scan time of 90 seconds or less means the machine is ready almost as soon as the vehicle is in position.
Key Features
• Automatic de-stacking of filled 25, 40 and 50 kg bags from pallets and from stacked loads in trucks and containers — no manual lifting in the unloading bay
• Vehicle or stack scanning with a recognition rate of 99% or better and a scanning time of 90 seconds or less
• Pattern recognition handles both horizontal and vertical stacking, and adjusts to different bag sizes without a mechanical changeover
• Bag break rate below 0.03% — the product arrives in the warehouse in the same condition it left the packing line
• Handles vehicles up to 17.5 m long and 1.6 – 2.6 m wide, covering the standard flatbed, box body and container fleet
• PLC control with a touch screen operator interface and remote control, so the cycle can be run and fine-tuned from the unloading bay
• Working voltage 380 V, 50 or 60 Hz, matched to the local power supply at the time of order
• Handles both open mouth and valved bags, and unloads up to 1,200 bags per hour — roughly 30 to 60 t/h depending on bag weight
Applications
Bagged bulk plants — fertilizer, grain, feed, flour and chemical bagging lines
Warehouses and distribution centres receiving palletised bag loads
Feed mills and fertilizer blending plants
Flour mills, rice mills and oilseed crushing plants
Cement and building material bagging plants
Port and inland terminals handling palletised bag cargo
Open mouth and valved bag operations with 25, 40 or 50 kg bags
Any loading bay where bags are still being carried by hand
Technical Specifications
Model: RTL1200
Working voltage: 380 V, 50 / 60 Hz
Capacity: up to 1,200 bags per hour
Vehicle size: maximum length 17.5 m; width 1.6 – 2.6 m
Stacking pattern: horizontal / vertical
Vehicle scanning time: 90 seconds or less
Bag break rate: below 0.03%
Vehicle recognition rate: 99% or better
Bag size: 25, 40 and 50 kg
Bag material: open mouth bag, valved bag
Control system: PLC with touch screen interface and remote control
Why Recens
Recens builds bagging, palletizing, loading and unloading systems for fertilizer, grain, feed and chemical plants, so the depalletizer is designed by the same team that designed the packing line it will work downstream of. The machine is configured to the vehicles and bag types actually in use at the plant rather than sold as a fixed package, and Recens supports it with field service from installation and scale-up through to 24/7 ongoing support.
Get a Quotation
Send us your bag weight, bag type and the vehicles you need to unload — we will confirm the cycle time, the layout and the interface with your existing conveyor, and come back with a full quotation.
WhatsApp: +86 150 3816 6007
Website: www.recenstec.com
Overview
Features
Scans the vehicle or the pallet, recognises the stacking pattern and removes the bags layer by layer over the full length and width of the load
Vehicle recognition rate of 99 per cent or better, with a scanning time of 90 seconds or less
Handles both horizontal and vertical stacking, and both open mouth and valved bags of 25, 40 or 50 kg
Vehicle envelope up to 17.5 m long and 1.6 to 2.6 m wide, covering flatbed, box body and container vehicles
Bag break rate below 0.03 per cent, so the product reaches the warehouse in the same condition it left the packing line
PLC control with a touch screen operator interface and remote control
Capacity up to 1,200 bags per hour, roughly 30 to 60 tonnes per hour depending on bag weight
Working voltage 380 V, 50 or 60 Hz, matched to the local power supply at the time of order
Designed to work downstream of an existing bagging line without changing the bag type or the pallet pattern
Customer benefits
Unloading is done without anyone lifting a bag by hand — less strain, less injury risk and fewer people needed in the bay
Faster vehicle turnaround: the load is scanned in 90 seconds and the bags then come off in a steady stream
Bag breakage below 0.03 per cent means less product lost as spillage and much less cleaning in the bay
One machine covers the whole vehicle fleet and both bag types, with no mechanical changeover between orders
Built for decades of reliable service, delivering dependable quality that saves you time and money
Recens field service technicians to provide site supervision service from installation and scale-up to 24/7 ongoing support
