Recens® Bag Loading Truck Conveyor
Telescopic bag loading truck conveyor that extends into the truck or container to place filled 25-50 kg bags, with hydraulic height adjustment and a reversible belt. Up to 300 bags per hour and two to three fewer people in the loading bay.
Applications

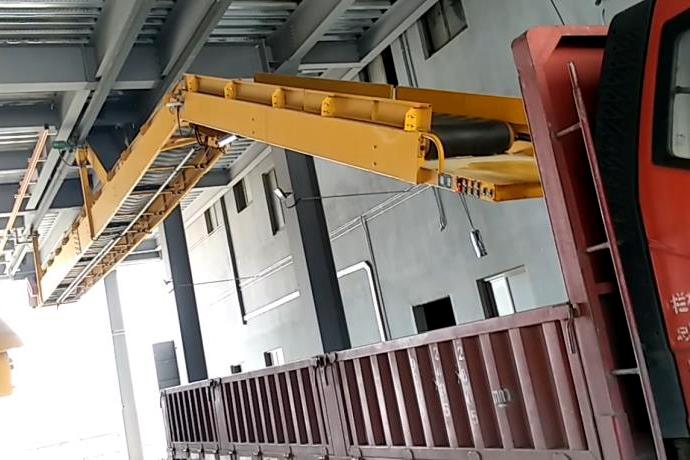

The Recens® Bag Loading Truck Conveyor takes the lifting out of loading bagged goods. The conveyor runs on a telescopic boom that slides forward into the truck or container, so the operator can reach the far end of the load without walking in and out with every bag. Height is set hydraulically to match the truck bed, and the belt runs in both directions, so the same machine loads a truck at the mill and unloads one at the warehouse. On a typical outbound bag dispatch this removes two or three people from the loading bay and cuts vehicle turnaround time substantially.
Key Features
• Telescopic boom extends into the truck or container — the operator no longer walks the load in and out
• Hydraulic height adjustment to match different truck beds and container floors
• Reversible belt — the same machine loads and unloads
• Multi-stage telescopic sections stop and hold at any intermediate length, so the discharge point can be positioned exactly where needed
• Anti-slip belt surface with side rails, so filled 25 – 50 kg bags track straight and do not run off the belt
• Variable frequency drive on the belt for smooth starting and speed matched to the packing line
• Control at the discharge end of the boom, so the operator works where the bags are being placed
• Emergency stop bar along the front, plus guards on the drive and telescopic sections
Applications
Flour and feed mills — loading 25 kg and 50 kg bags into trucks
Fertilizer bagging plants — urea, NPK and DAP bags
Cement and dry mortar bag loading bays
Sugar, starch and salt packing halls
Chemical and mineral bagged products
Distribution warehouses and logistics centres handling bagged or cartoned goods
Technical Specifications
Belt width: 600 / 800 / 1,000 mm
Telescopic stages: 2 – 4, with travel stopping at any intermediate position
Overall length: approx. 8 – 24 m depending on the number of stages
Belt conveying speed: 10 – 30 m/min, reversible, VFD controlled
Telescoping speed: 5 – 10 m/min, reversible
Bag weight: up to 50 – 60 kg per bag
Loading capacity: up to 300 bags/hour in the standard configuration
Height adjustment: hydraulic, up to about 2.2 m above floor level
Inclination: 0 – 25° for lifting bags to the truck bed
Power supply: AC 380 V / 50 Hz, 2.2 – 7.5 kW
Length, belt width and height range are set by your truck and your building. Send us those and we will configure the conveyor.
Why Recens
Recens has two decades of bagging and loading equipment behind it in flour, feed and grain plants, and knows that a loading conveyor only pays back if it fits the loading bay it is installed in. Each unit is built to the truck fleet and the building, with installation supervision and operator training included.
Get a Quotation
Tell us your bag size and weight, the truck height and how far into the truck you need to reach — we will size the boom and quote.
WhatsApp: +86 150 3816 6007
Website: www.recenstec.com
Overview
Features
Telescopic boom slides forward into the truck or container, so the operator can place bags at the far end of the load without walking in and out with every bag
Multi-stage telescopic sections stop and hold at any intermediate length, letting the discharge point be positioned exactly where the next bag is needed
Hydraulic height adjustment matches different truck beds and container floors, so the conveyor always meets the load at the right level
Reversible belt with variable frequency drive — the same machine loads a truck at the mill and unloads one at the warehouse
Anti-slip belt surface with side rails keeps filled 25 – 50 kg bags tracking straight and prevents them running off the belt
Controls located at the discharge end of the boom, so the operator works next to the bags being placed rather than back at the base
Emergency stop bar along the front of the boom, with guards on the drive and telescopic sections
Belt widths of 600 / 800 / 1,000 mm, overall lengths from about 8 m to 24 m and inclination up to 25° to lift bags to the truck bed
Loading capacity up to 300 bags per hour in the standard configuration, with belt speed of 10 – 30 m/min
Customer benefits
Two to three fewer people needed in the loading bay on a typical outbound dispatch
Shorter vehicle turnaround time and far less manual lifting and carrying
Less strain and injury risk for the loading crew
Built for decades of reliable service, delivering dependable quality that saves you time and money
Recens field service technicians to provide site supervision service from installation and scale-up to 24/7 ongoing support
