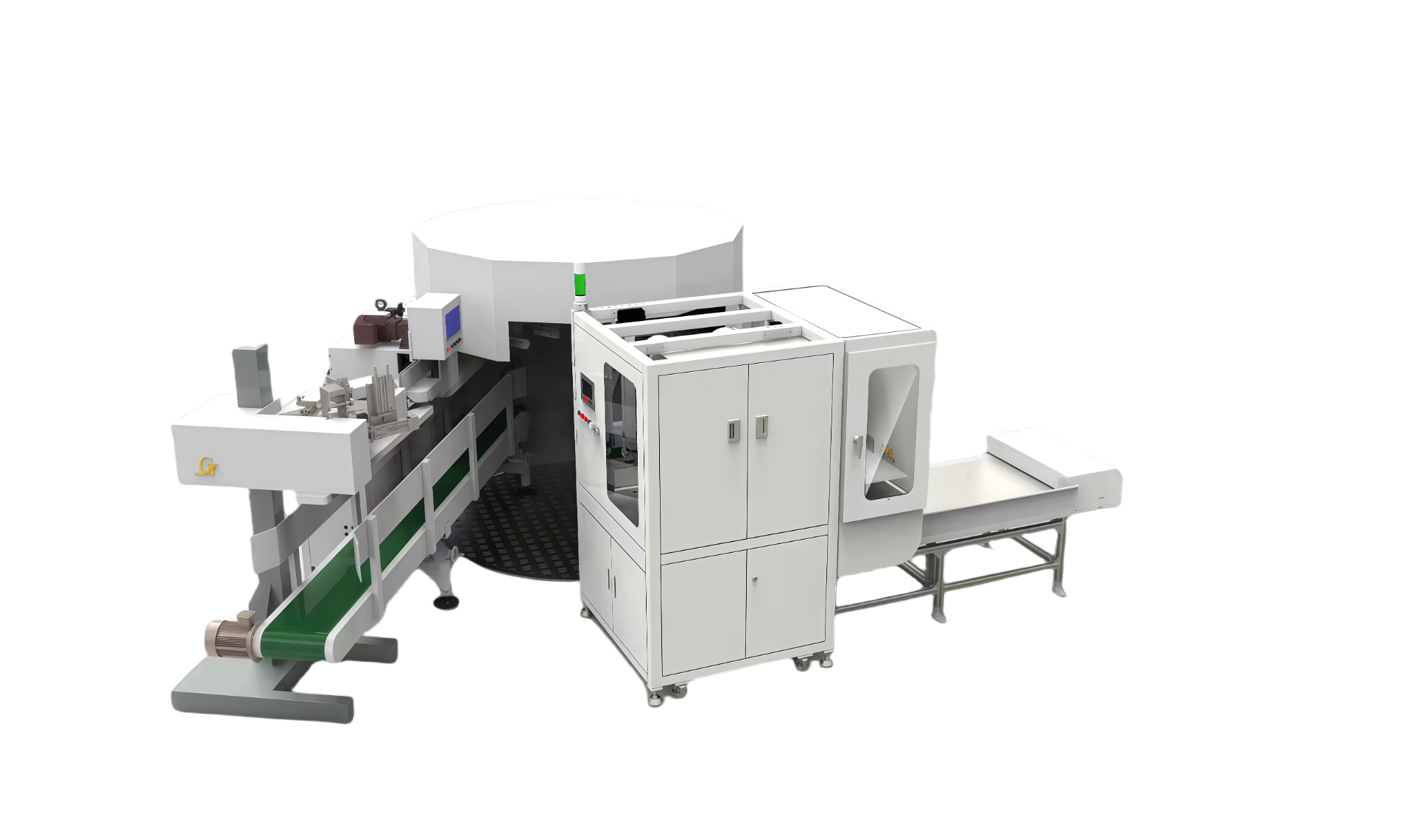

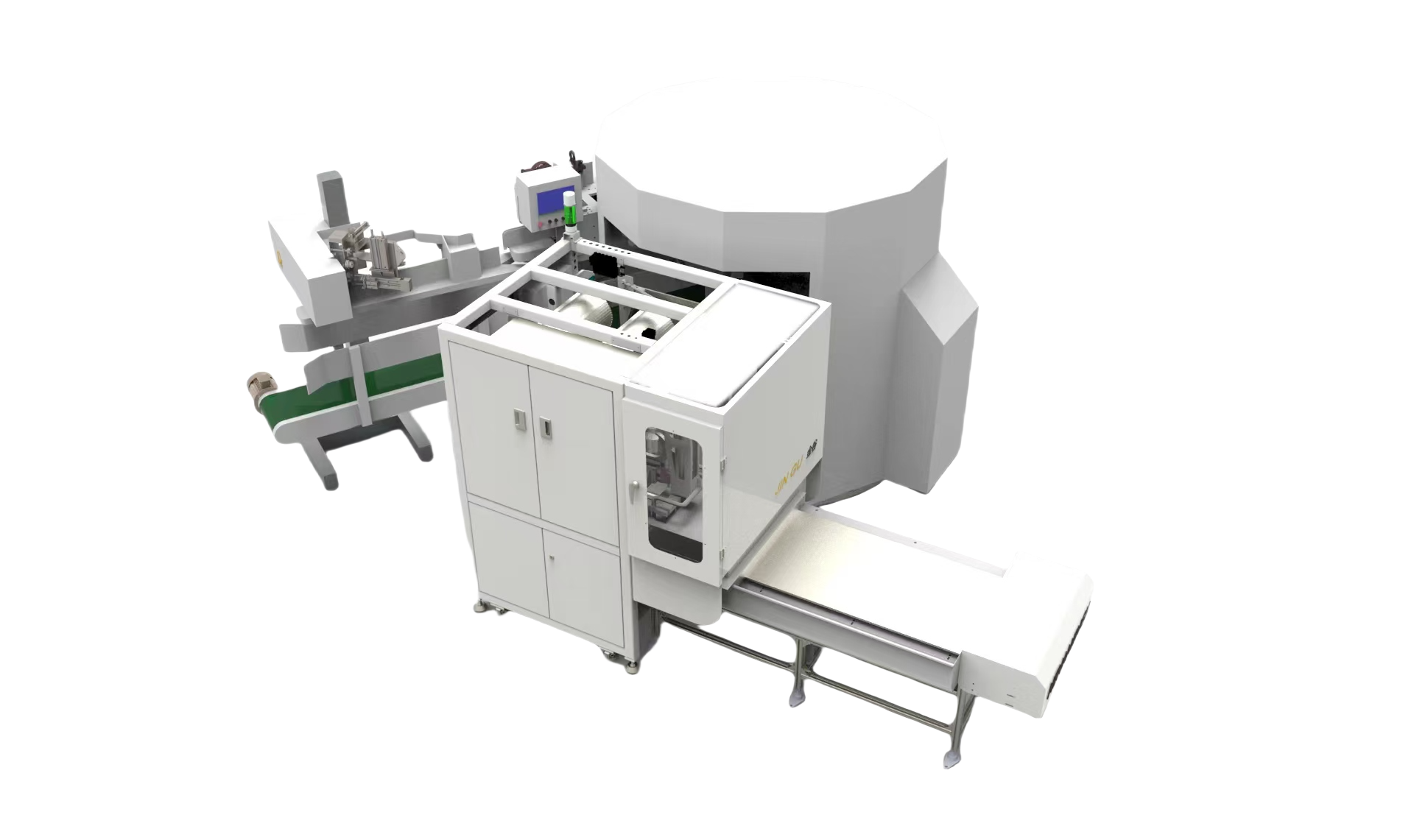

Recens® Flour Automatic bagging carousel machine
Continuously rotating bagging carousel with 4 or 6 filling spouts for 10-50 kg bags. Weighing, filling, compaction and bag transfer take place at separate stations, giving up to about 1,200 bags per hour with no start-stop dead time.
Applications
The Recens® Flour Automatic Bagging Carousel Machine is the filling centre of a high-capacity flour packing line. Four or six filling spouts are carried on a continuously rotating platform: while one bag is being filled, the other spouts are being weighed, compacted and discharged, so there is no start-stop dead time between bags. The whole cycle — weighing, rotation, spout placement, product discharge, compaction and bag clamp/release — is managed electronically by a PLC, which is what allows the machine to hold a steady output hour after hour with only bag-magazine refilling left for the operator.
Key Features
• 4 or 6 filling spouts on a continuously rotating platform — no start-stop, so output is high and consistent
• Weighing, filling, compaction and bag transfer carried out at separate stations around the circle
• Cutter valve in each feeding unit gives a fast, precise dose with a clean cut-off
• Pneumatic tightening system clamps the bag spout during filling; non-greasing pneumatic parts throughout
• Vibratory compaction plates settle the product in the bag, so bags come out square and palletize stably
• Software absorbs vibration from external factors to keep the weighing stable
• Automatic bag transfer to the outlet belt conveyor at the end of the rotation
• PLC control with colour touch-screen HMI; runs as a complete line with the Recens® bag attacher and sewing machine
Applications
Flour and semolina mills
Maize mills
Feed mills
Barley, rye, oats and similar grain processing plants
Other food processing — tea, malt, peas and nuts, coffee, soybean, seeds
Sugar, starch and similar free-flowing bulk solids
Technical Specifications
Filling spouts: 4 or 6
Capacity: up to approx. 700 bags/hour (4 spouts) and up to approx. 1,200 bags/hour (6 spouts), product dependent
Filling weight: 10 – 50 kg per bag
Bag types: PP woven, paper and PE bags — pillow and gusseted
Bag size: width 330 – 640 mm, length 600 – 1,200 mm
Compaction: bag beater / vibratory plates
Control system: PLC weighing and filling, single master drive for rotation
Compressed air: 6 bar, dry and oil-free
Power supply: AC 380 V / 50 Hz
Options: bag shaking unit, sewing unit, stainless steel execution, bag de-aeration
Carousels are configured to the project and to the product being packed. Tell us your product, bag size and required output and we will size the spout count.
Why Recens
Recens has been building bagging and palletizing lines for flour mills and grain processors for more than two decades. Each carousel is configured around the customer's product, bag and hall layout, and Recens engineers balance the spouts, the compaction and the bag transfer during commissioning on site.
Get a Quotation
Tell us your product, bag size and tonnage per hour — we will recommend a 4 or 6 spout carousel and send a full quotation.
WhatsApp: +86 150 3816 6007
Website: www.recenstec.com
Overview
Features
4 or 6 filling spouts carried on a continuously rotating platform — the carousel never stops and starts between bags, so output is high and consistent through the shift
Weighing, filling, compaction and bag transfer are carried out at separate stations around the circle, so weighing is never disturbed by the filling of the next bag
Cutter valve in each feeding unit gives a fast, precise dose with a clean cut-off; weighing is performed by load cells communicating with an advance-weighing module
Pneumatic tightening system clamps the bag spout to the filling head during discharge; non-greasing pneumatic parts keep the packing hall clean
Vibratory compaction plates settle the product inside the bag as it travels between stations, so bags come out square and stack stably on the pallet
Software absorbs vibration from external factors to keep the weighing stable, even with an adjacent mill or compressor running
Filled bags are transferred automatically to the outlet band conveyor at the end of the rotation and can pass through a shaking station before the mouth is closed by a sewing unit
All machine processes — weighing, rotation, spout placement, product discharge, vibration and bag hold / release — are electronically managed by a Siemens PLC with HMI touch screen

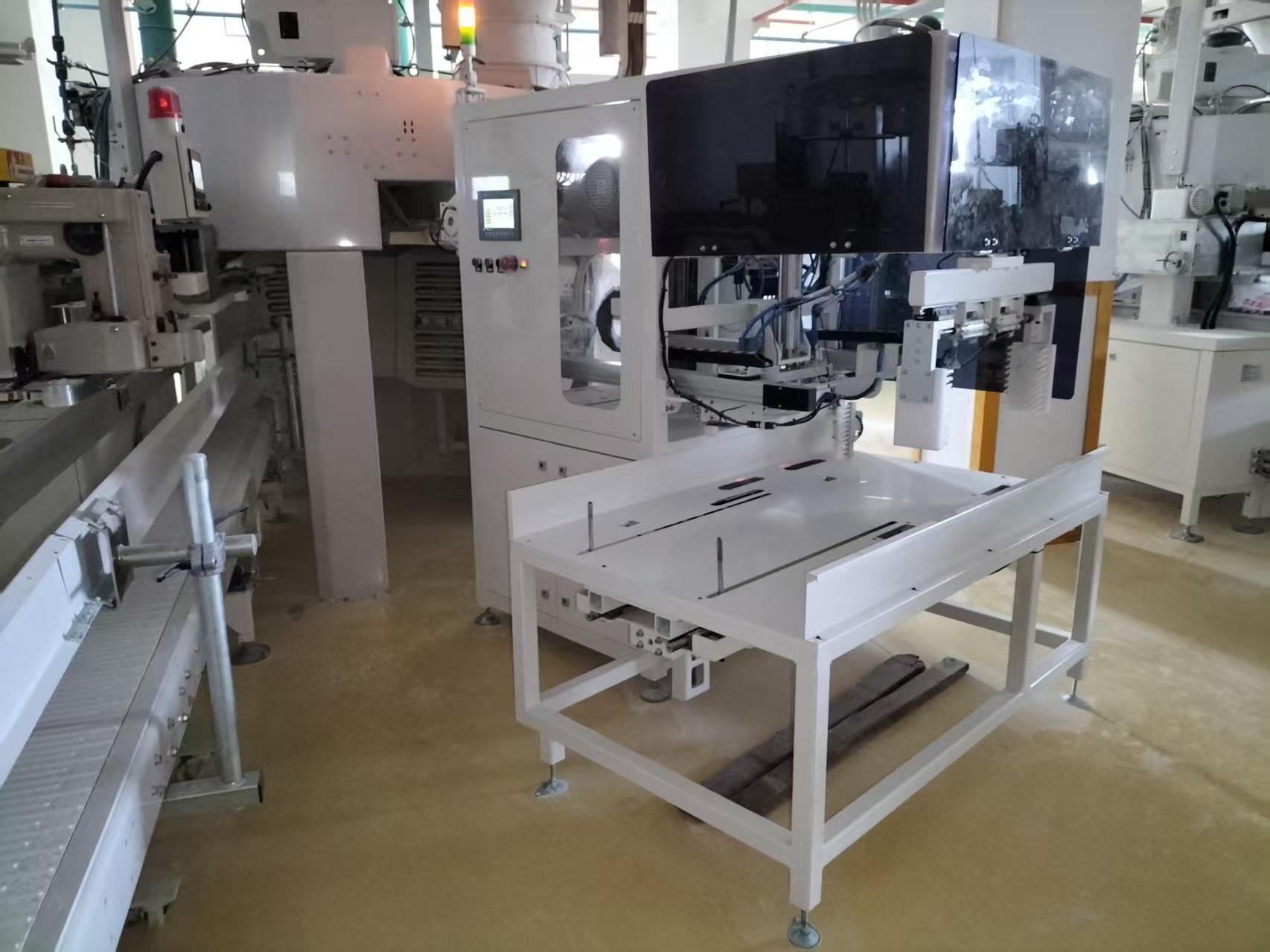

Runs as a complete packing line together with the Recens® automatic bag attacher and the Recens® automatic sewing machine
Customer benefits
Maximize uptime and productivity — continuous rotation removes the dead time between bags
Low labor cost and optimized working process
Built for hundreds of reliable services, delivering dependable quality that saves you time and money
Recens field service technicians to provide site supervision service from installation and scale-up to 24/7 ongoing support
