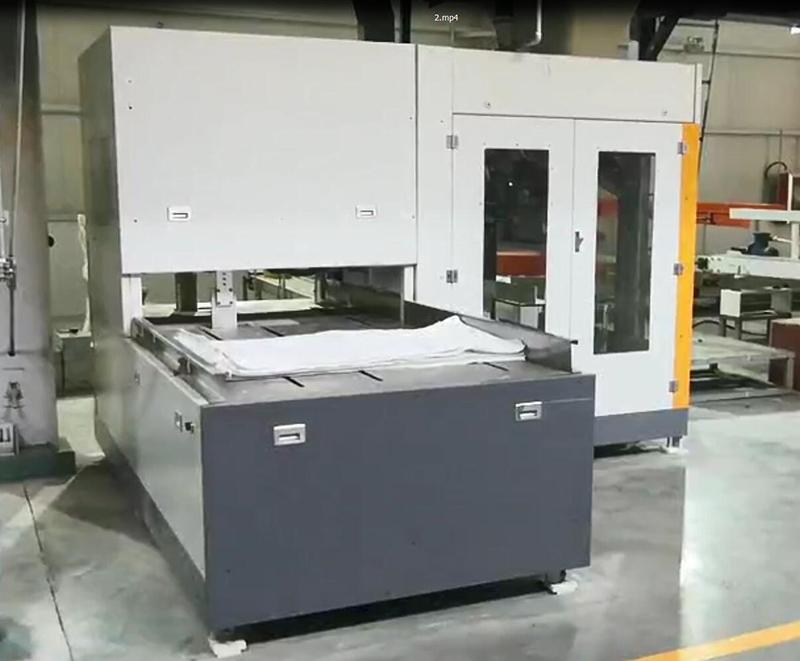

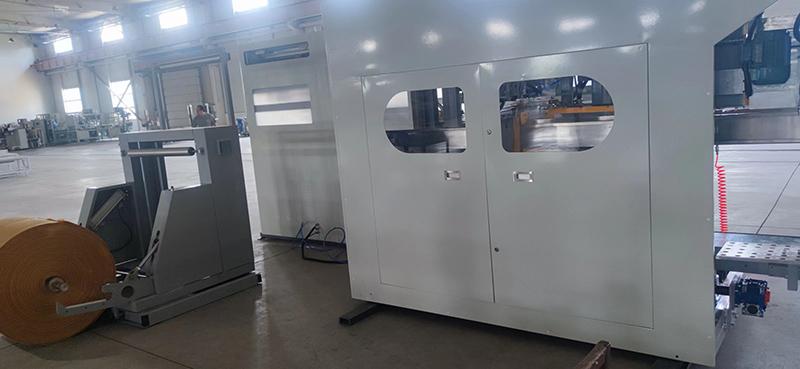

Recens® Tubular Reel Automatic Bagging Machine

Applications

The Recens® Tubular Reel Automatic Bagging Machine gives a single-spout packing station two ways to make a bag. It carries both a bag magazine holding up to 900 woven PP bags and an FFS (form-fill-seal) module that forms the bag from a reel of tubular film. The same machine can therefore run on pre-made woven bags or on film, depending on product, packed cost and what the customer's market prefers — without buying a second machine. Bags are opened by a suction bar, presented to the filling spout, clamped, filled and released automatically, then carried to the sewing machine.

Key Features

• Dual bag supply — bag magazine (up to 900 woven PP bags) plus an FFS module fed from a tubular film reel

• Bag mouth opened by a suction bar, placed on the filling spout, clamped, filled and released automatically

• Position sensor reads the open-mouth position and interlocks the servo, so bag length stays constant

• Open-mouth cylinders and linear modules used as actuators; suction nozzle with pneumatic finger-cylinder clamping

• Filled bag is detected and placed on the conveyor belt, then carried on to the bag sewing machine

• Designed for single-spout bagging stations — a compact alternative to a full carousel where capacity allows

• PLC and touch-screen control on the bagging frame

• Handles 15 to 40 kg woven PP bags at up to 10 bags per minute

Applications

Flour and semolina mills

Maize and grain mills

Feed mills, premix and aqua feed plants

Chemical, plastic pellet and fertilizer packing

Any plant that wants to switch between woven bags and tubular film

Technical Specifications

Bag sources: bag magazine (woven PP) and FFS module (tubular film reel)

Bag magazine capacity: up to 900 woven PP bags

Bag weights: 15 to 40 kg woven PP

Capacity: up to 10 bags per minute (approx. 600 bags/hour)

Film: PE tubular film (M-fold); gusset and thickness to suit the bag

Bag opening: suction bar with pneumatic clamping

Filling station: single spout

Control system: PLC with touch-screen HMI on the bagging frame

Power supply: 380 V / 50 Hz

Machines are configured to the project and to the bag or film in use. Tell us which of the two you want to run and we will size the magazine and the filling head.

Why Recens

With more than twenty years in bulk handling and packing equipment, Recens supplies mills and processing plants worldwide. Each machine is configured around the customer's product and around whether they intend to run pre-made bags, film or both, and Recens engineers run the first bags on your film and your product before the line is signed off.
