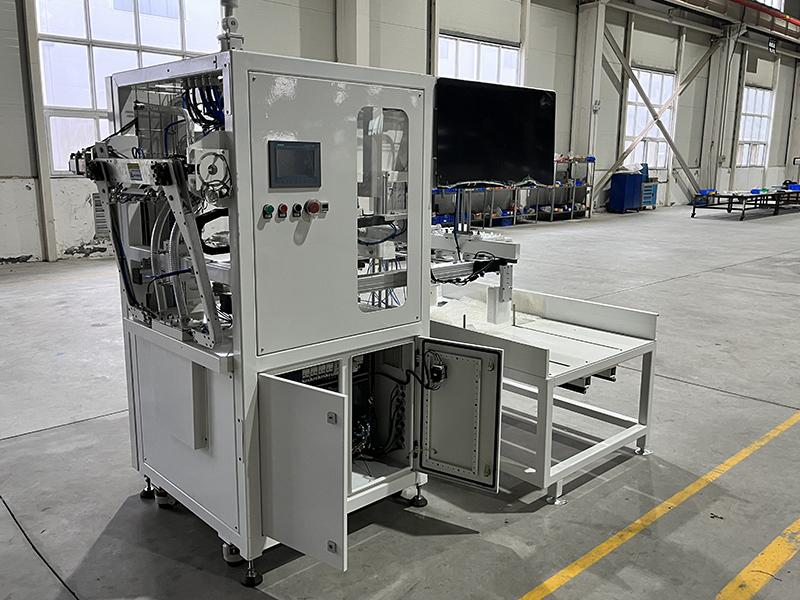

Recens® Flour Automatic Bag Attacher
Automatic bag attacher that places empty PP woven bags onto 4 or 6 spout carousel filling stations. 600-bag magazine, negative-pressure bag opening, automatic faulty-bag ejector and up to 12 bags per minute with no operator at the spout.
Applications
The Recens® Flour Automatic Bag Attacher removes the last manual job from a carousel packing line: putting the empty bag on the spout. A high-capacity bag magazine feeds a suction pick-up station, the bag is opened under negative pressure and carried by a servo-driven swing arm to the circular filling spout of the scale, where it is clamped and filled. On a 4 or 6 spout carousel this is the difference between a line that needs an operator at every spout and a line that needs one operator for the whole packing hall.
Key Features
• High-capacity bag magazine split into a storage area and a suction area — up to 600 bags per batch, refilled without stopping the line
• Opening by negative-pressure suction nozzle combined with pneumatic finger-cylinder clamping — reliable even on thin, clingy PP woven bags
• Photoelectric position feedback on every actuator, so the bag always reaches the opening mechanism at the correct point
• Recens® bag trouble-shooter: a sensor detects a faulty bag, a high-pressure air jet blows it clear and the machine resumes automatically — no stop, no operator intervention
• Servo-driven bagging device designed for a circular feed spout; the existing scale spout does not have to be changed — only the position sensor is adjusted
• One set of cylinders plus a swing-arm adjustment covers different bag sizes and spout openings
• PLC control with a touch-screen panel on the frame
• Runs 15 to 40 kg woven PP bags at up to 12 bags per minute
Applications
Flour and semolina mills — the main application
Maize, rye, barley and oat mills
Feed mills and premix plants
Fertilizer and chemical packing halls
Designed for 4 & 6 spout carousel bagging stations (Buhler, Ameco and similar)
Technical Specifications
Bag material: PP woven bags (paper and PE bags on request)
Bag weights: 15, 20, 25 and 40 kg
Capacity: up to 12 bags a minute, about 720 bags an hour
Bag magazine: up to 600 bags per batch (storage + suction area)
Bag dimensions: W 450 – 650 mm × L 750 – 950 mm (customisable)
Actuation: pneumatic cylinders and linear modules, servo bagging device
Control system: PLC with colour HMI panel
Compressed air: 0.6 – 0.8 MPa
Power supply: 380 V / 50 Hz industrial supply
Every attacher is built to the project and to the carousel it serves. Send us your bag dimensions and the output you need and we will confirm the fit.
Why Recens
Recens has more than two decades of bagging and conveying equipment behind it in flour mills and grain processing plants. Each bag attacher is configured around the customer's bag and the carousel it serves, and Recens engineers align the magazine, the suction and the swing arm on the spouts you already run.
Get a Quotation
Tell us which carousel you are running and the bag size you use — we will confirm compatibility and quote.
WhatsApp: +86 150 3816 6007
Website: www.recenstec.com
Overview
Features
A bag magazine split into a storage area and a suction area, holding up to 600 bags per batch
Open-mouth cylinders and linear modules as actuators, with the suction nozzle matched to a pneumatic finger cylinder that clamps the bag
Bags are opened by negative pressure, so no mechanical fingers have to enter the bag mouth
Photoelectric and other sensors feed back the position and the result of every movement, so the bag arrives exactly where the opening mechanism expects it
A bag trouble shooter that senses a faulty bag, lifts a high-pressure air jet, blows the bag clear and then resumes the cycle by itself
A servo-driven bagging device made for the circular filling port, so the existing filling port of the scale does not have to be changed
Different bag sizes and discharge openings are covered by adjusting the air cylinder and the bag-hanging swing arm
Takes 15, 20, 25 and 40 kg woven PP bags, twelve a minute
Made for 4 and 6 spout carousels — Buhler, Ameco and similar filling stations
Customer benefits
Up to 600 empty bags held ready on the machine, so the operator is not feeding bags one at a time
A jammed or faulty bag is cleared and the cycle restarted without stopping the carousel
Attaches to the filling port the carousel already has, so the weighing and filling equipment stays as it is
One set of cylinders plus a swing-arm adjustment covers a range of bag sizes and spout openings
Built for decades of reliable service, delivering dependable quality that saves you time and money
Recens field service technicians to provide site supervision service from installation and scale-up to 24/7 ongoing support
