Recens® Flour Automatic Sewing Machine
Automatic bag sewing station for 15/20/25/40 kg PP woven bags. It grips and shapes the bag mouth, holds it straight into a photoelectric sewing head and stitches up to 12 bags per minute on 4 or 6 spout carousel lines.
Applications

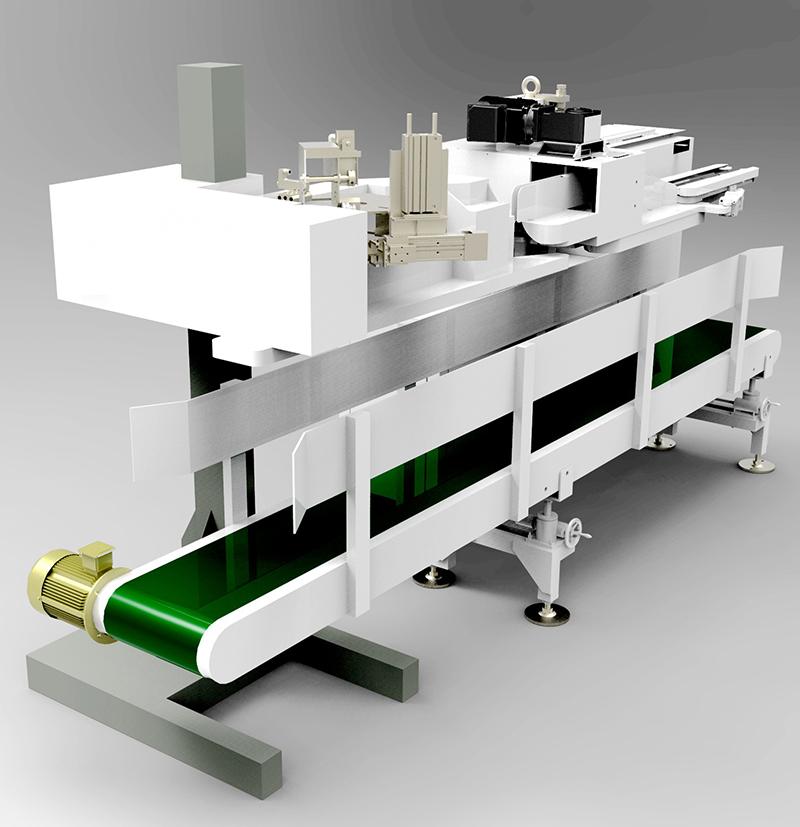

The Recens® Flour Automatic Sewing Machine is the bag-closing station that sits at the end of a high-speed flour packing line. It takes the filled bag handed over from the carousel bagging machine, straightens and stretches the bag mouth, and feeds it through a photoelectric-controlled sewing head that shapes and stitches the top in one continuous movement. Because the bag mouth is gripped and held straight through the whole transfer, the seam comes out square and uniform bag after bag — which is what keeps a pallet of 25 kg flour bags stable and presentable.
Key Features
• Complete closing station in one synchronised sequence — bag gripping, mouth shaping, flat-belt transfer and sewing
• Recens® bag gripping device shapes and stretches the bag mouth and takes the filled bag over from the carousel
• Automatic clamp arm holds the bag mouth straight into the sewing head — no skew, no missed stitches
• Flat belt conveyor is speed-synchronised with the transfer device; belt height adjustable by handwheel
• Photoelectric-controlled sewing device performs shaping and sewing as one integrated process
• Optional folding device, labelling device and alternative sewing heads on request
• PLC and touch-screen control that follows the line speed automatically
• Guarded sewing head with thread-break detection and quick-access threading
Applications
Flour and semolina mills — 15 / 20 / 25 / 40 kg PP woven bags
Maize and feed mills — maize meal and compound feed
Rice and grain processing — rice, wheat and soymeal
Fertilizer and chemical bagging lines
Any 4 or 6 spout carousel bagging station (Buhler, Ameco and similar)
Technical Specifications
Bag weights: 15 / 20 / 25 / 40 kg PP woven bags
Line speed: up to 12 bags a minute, about 720 bags an hour
Stitch type: two-wire chain stitch, stitch length 6.5 – 11 mm
Sewing speed: up to approx. 2,000 stitches per minute
Thread: cotton or polyester, to suit the bag material
Transfer: flat belt conveyor, handwheel height adjustment
Options: folding device, labelling device, alternative sewing head
Control system: PLC with touch-screen HMI
Power supply: 380 V / 50 Hz mains
Each closing station is built to the project and to the carousel it has to match. Tell us your bag size and your line speed and we will specify the station.
Why Recens
For over twenty years Recens has supplied packing, conveying and palletizing machinery to mills and processing plants worldwide. Each closing station is configured around the customer's own bag and the carousel it works with, and Recens engineers set the stitch up on your own bags at your own line speed before hand-over.
Get a Quotation
Send us a photo or a sample of your filled bag together with your line speed — we will specify the sewing station that matches.
WhatsApp: +86 150 3816 6007
Website: www.recenstec.com
Overview
Features
A bag gripping device that shapes and stretches the bag mouth, then clamps the filled bag and hands it over from the carousel filling station to the transfer system
An automatic clamp arm that holds the bag mouth straight on its way into the sewing head, so the seam goes on square
A flat belt transfer conveyor that runs in step with the bag transfer device, with handwheel height adjustment to line up with the bag mouth
A sewing head governed by photoelectric control, so shaping and sewing run as one continuous movement rather than two separate operations
Labelling device, folding device and alternative sewing heads available as options
Set up for 15, 20, 25 and 40 kg PP woven bags at up to 12 bags per minute

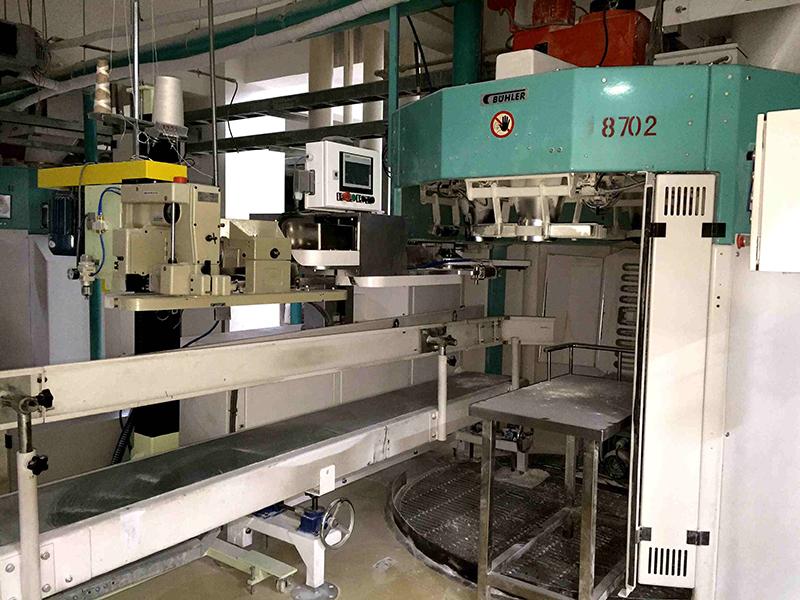

Attaches to any 4 or 6 spout carousel filling station, Buhler and Ameco lines included
PLC and touch-screen control that follows the line speed automatically
Customer benefits
A straight, square seam on every bag, so fewer bags split or leak in transit
One operator supervises the closing station instead of guiding every bag into the sewing head by hand
Bolts onto a carousel that is already running, so the existing filling line does not have to be rebuilt
Handwheel height adjustment and adjustable bag clamping mean a change of bag size is a setting, not a modification
Built for decades of reliable service, delivering dependable quality that saves you time and money
Recens field service technicians to provide site supervision service from installation and scale-up to 24/7 ongoing support
